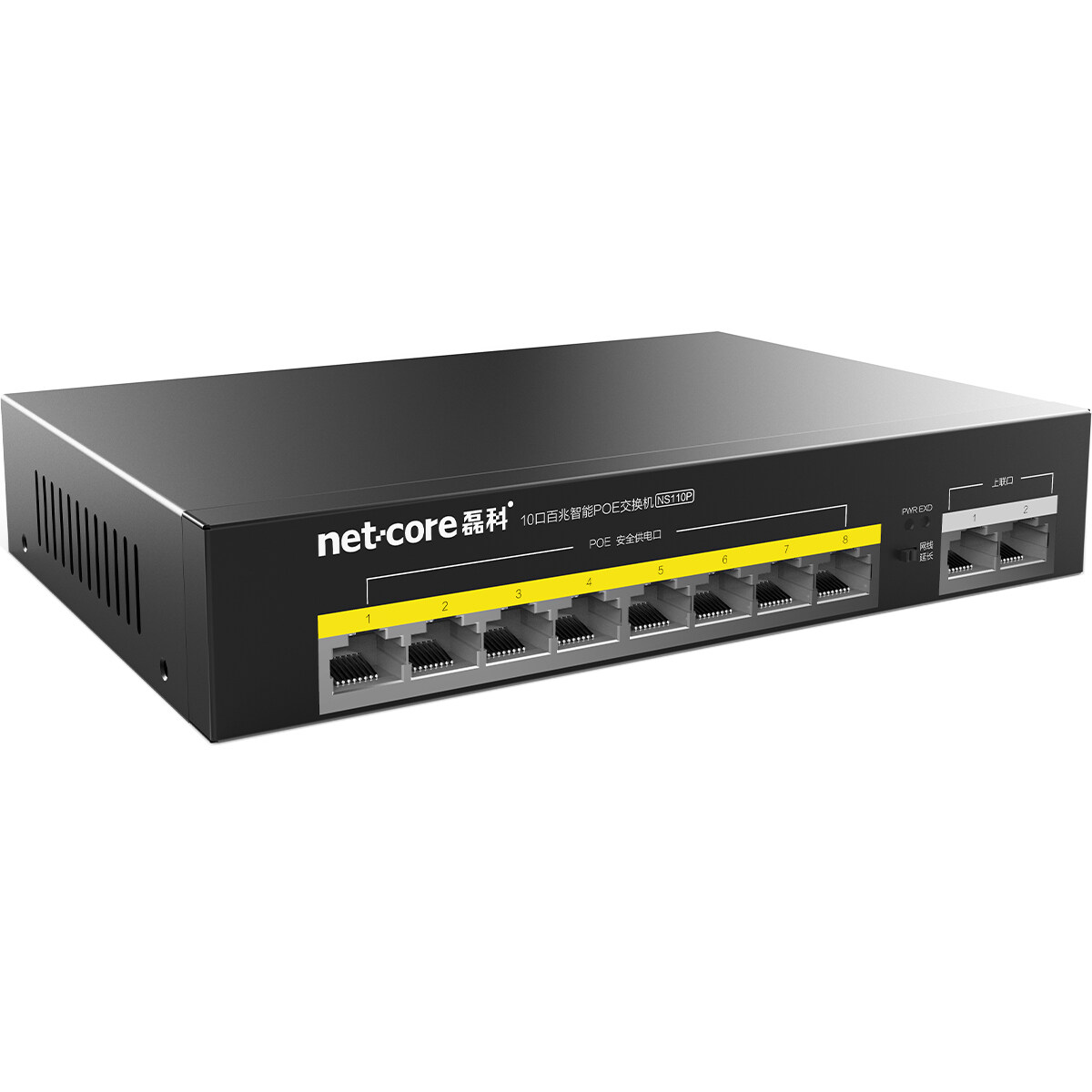

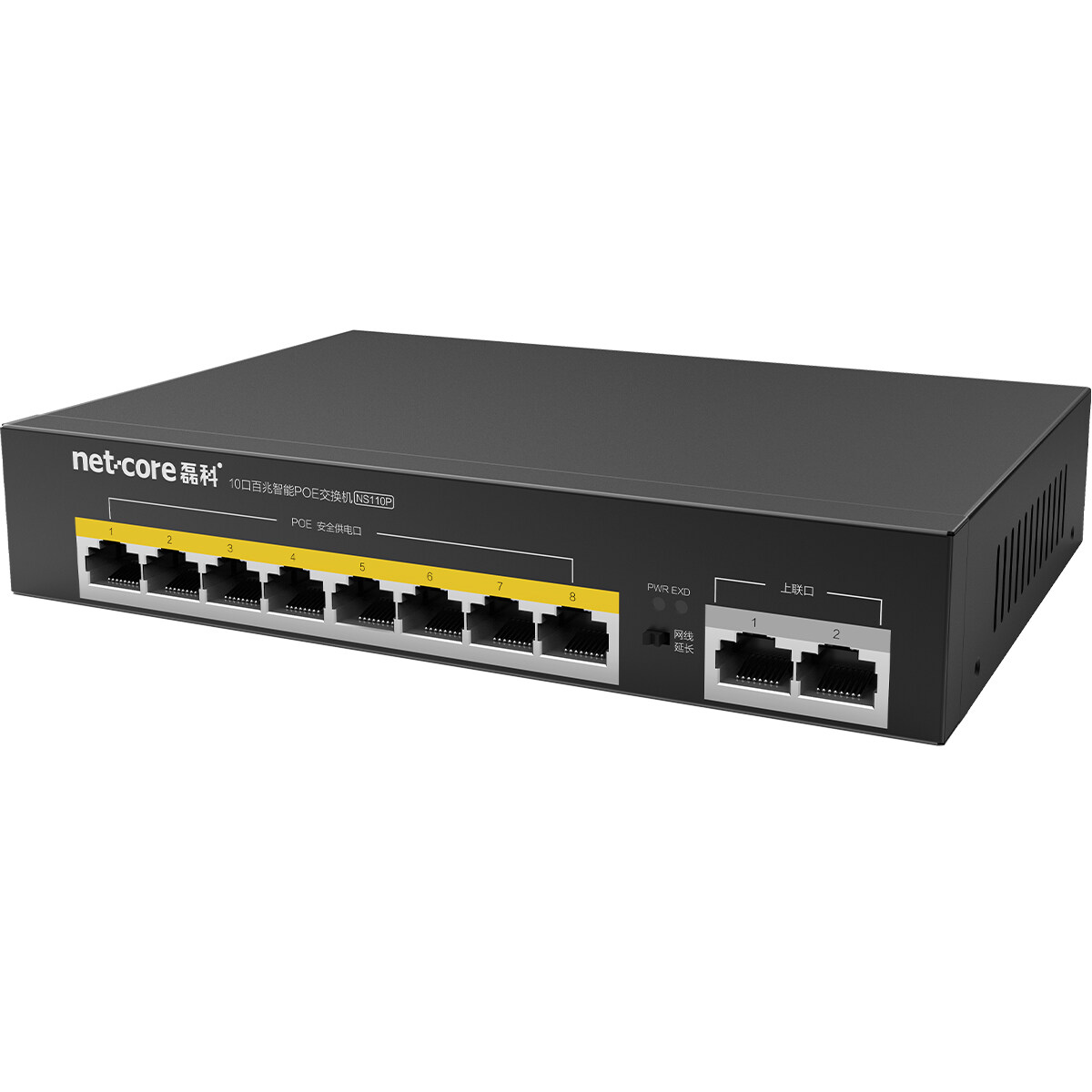

-8FE POE+2FE Uplink POE Switch, machine power 120W
-Support ordinary switch/250M intelligent network cable extension transmission
-Smart Buffer cache optimization for surveillance maximizes switch cache utilization, Reduces picture freezing and port packet loss caused by sudden large video streams on individual ports
-Simple and convenient to use, no configuration required, plug and play, flexibly expand home and office networks without being limited by the power line layout
| Product model | NS110P |
| Basic functions | Follow IEEE802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards
Support IEEE802.3at/af standard, compatible with Powered Device (PD) supporting IEEE802.3at/af Support IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control All ports have wire-speed forwarding capability Supports self-learning and aging of MAC addresses |
| Port |
8*10/100M POE ports 2*10/100M uplink RJ45 ports |
| Forwarding mode | Store and forward |
| Backplane bandwidth | 2Gbps |
| MAC address table | 2K |
| Working mode | Support ordinary switch/250M transmission |
| Transfer rate | Ethernet 10Mbps half duplex, 20Mbps full duplex Fast Ethernet 100Mbps half duplex, 200Mbps full duplex |
| Size | 190mm×140mm×43mm |
| Working environment |
Operating temperature: 0°C ~ 40°C Storage temperature: -40°C ~ 70°C Operating humidity: 10% ~ 90%, RH non-condensing Storage humidity: 5% ~ 90%, RH non-condensing |
| POE standard |
Standard IEEE802.3AF/AT protocol, the maximum power of a single port is 30W, and the maximum power of the machine is 120W Support overcurrent, overvoltage, short circuit protection Support high power PD soft start Support sequential boot Support certified non-standard PD power receiving |
| Power | AC input 110V-220V 50/60HZ |
| Standard protocol |
IEEE 802.3 IEEE 802.3i 10BASE-T |
